RAD SS Turbo Header (Drag/Off-Road)
RAD SS Turbo Header (Drag/Off-Road)

Alternative Views:


List Price: $1,375.95
Your Price: $1,195.95
You save $180.00!


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: RAD-HEADER-D
Qty:

Description

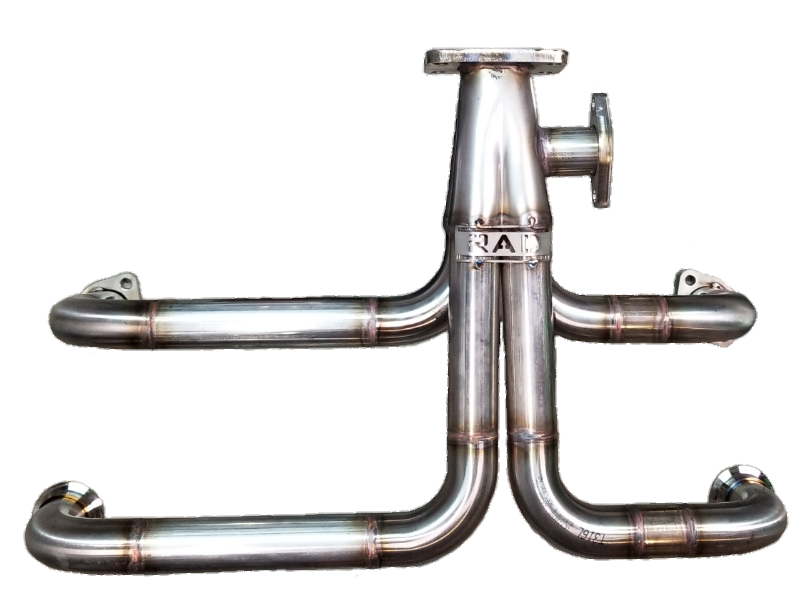

RAD SS Turbo Header:

- 100% Stainless Steel Construction
- Made in the USA
- Fully TIG Welded
- Thick 3/8" flanges
- 1.5" O.D tubing (Good for 500hp)
- 38mm, 2 bolt Wastegate flange added.
- V Band J tube connections (No leaky gaskets!)
- Built on an actual VW Engine to your width/specs to insure perfect fit.
- Adjustable turbo elbow to rotate forward/backwards for proper clearance (Under decklid header)
- Fits T3 flanged turbos of any size including 2"- 4" inlets, 2"- 2.5" outlets, and 2.5"- 4" downpipes.

All Headers come with J Tubes for the #1 & #3 exhaust. As well as 2 x V band Clamps.

GROUND CLEARENCE: lowest point sits flush with the bottom of a 1.5qt thin sump or Empi 1.5qt sump.

Type:
Drag/off-road headers - locates the turbo flange in the center of the engine up high. You can mount the turbo inlet to the driver or passenger side. This header can be used for Draw Through or Blow Through applications.

Custom:
Contact us after checkout with your custom spec application (measurements, photos, etc.) This option enables you to have the header built specific to your needs to fit your RAD setup! Larger primary tubing is available in this option, as well as turbo flange type.

Engine Width:

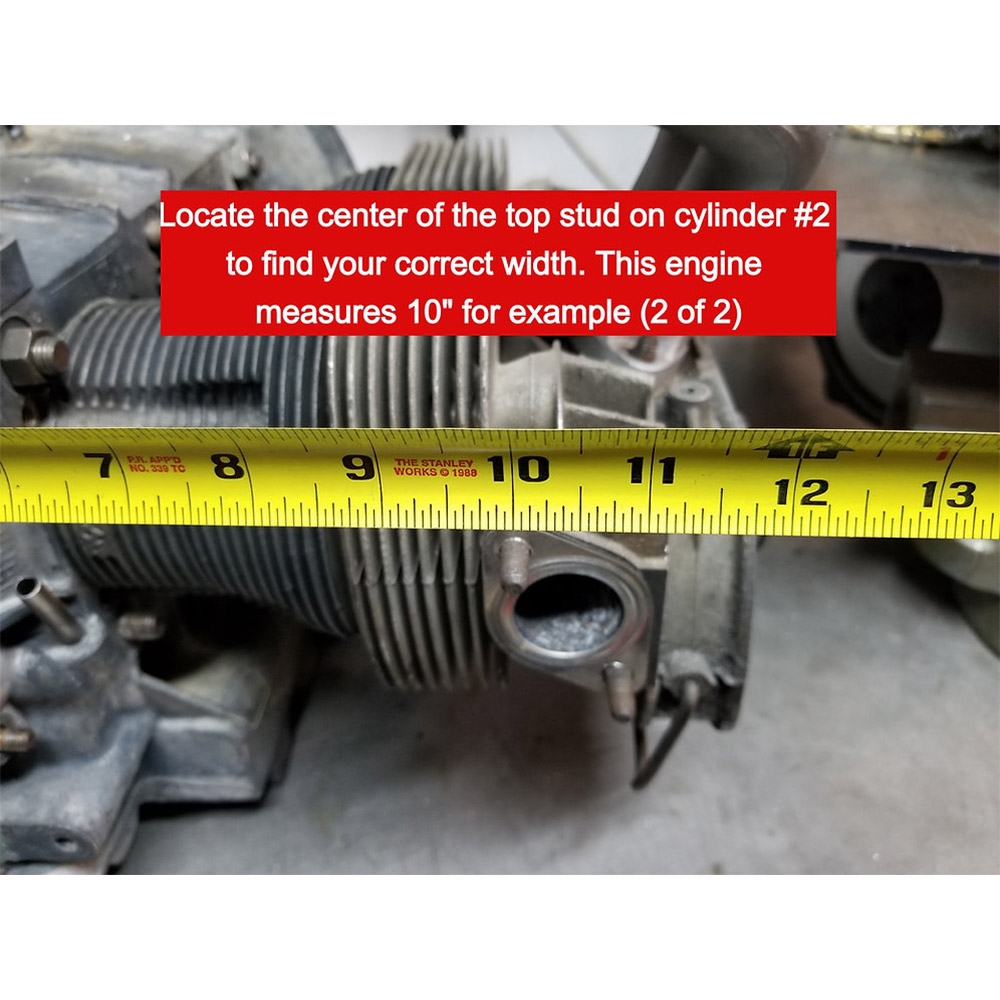

You will need to measure your assembled engine from the center of your engine case to the center of the top exhaust stud on the #2 cylinder. Then select which is yours in the drop down to complete your order.

NOTE: All RAD SS Headers are built to order. Please allow 2-4 weeks build time after purchase.
